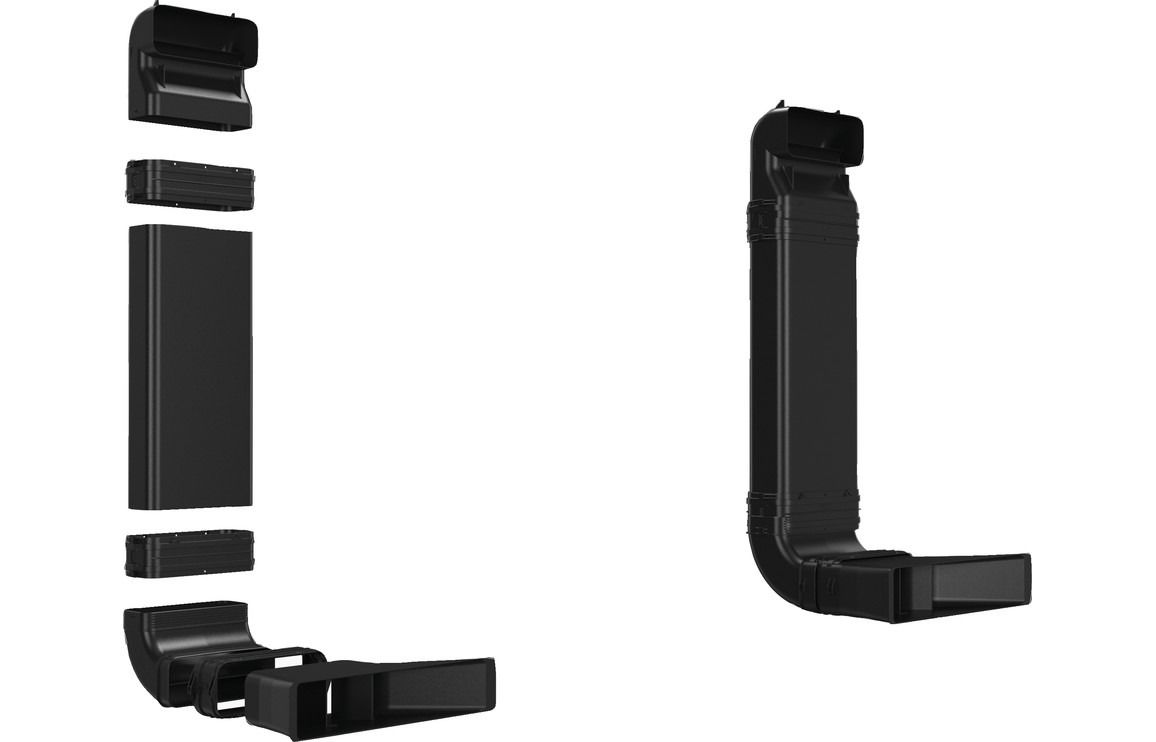

Bosch HEZ9VDKR1 60cm+ Recirculation Starter Kit

This is a ducting kit from Bosch, specified for Mastercraft kitchen designs where a cooktop with integrated ventilation is fitted and the extracted air needs to travel down into the plinth area rather than out through a wall or up through the ceiling. It is built for partly ducted recirculation setups, and it suits worktop depths of 60cm or more.

If you have chosen a venting hob because you want a clean run of worktop with no visible extractor above it, this kit is what makes the ducting route possible underneath. The various duct sections connect together to carry air from the hob down to a diffusor, which then spreads it out in the plinth area at the base of your cabinets.

Key

Benefits

• Allows a venting hob to work with ducted extraction that runs downward into the plinth, so nothing interrupts the sightline above your worktop.
• The connector sleeves let you combine the flat duct elements to suit the actual layout inside your cabinet run, rather than forcing one fixed configuration.
• Works with worktop heights up to 960mm, which covers most standard and slightly raised kitchen setups.
• The diffusor spreads the outflowing air rather than releasing it in one concentrated point, which helps keep airflow at floor level manageable and unobtrusive.
• Black plastic ducting sits out of sight behind cabinetry, so there is nothing on show once the kitchen is finished.

What's Included

• Vertical 90 degree S bow flat duct element (male)
• 3 x connector sleeve (female) to join male flat duct elements
• Straight tube element, 500mm (male)
• Vertical 90 degree L bow flat duct element (male)
• Diffusor element that connects directly to the flat duct elements

Specifications

• Type: Ducting kit
• Suitable for worktop depths of 60cm or more
• Suitable for worktop heights up to 960mm
