Bosch HEZ9VDKR0 70cm+ Recirculation Starter Kit

This is a ducting kit from Bosch, specified by Mastercraft Kitchens for recirculating cooktops with an integrated ventilation module, the kind where extraction sits within the hob itself rather than overhead. It is designed for kitchens with worktop depths of 70cm or more, and it carries the air from the cooktop down through the cabinetry to release it at plinth level. Where your kitchen has an induction hob with built in extraction and no external ducting to outside, this kit is what makes the recirculation route work.

Key

Benefits

• Keeps extraction internal, so there is no need to duct air through an external wall or roof, which suits kitchens where that simply is not practical.
• The diffuser element spreads outflowing air across the plinth area, so it does not blast out in one concentrated spot near your feet.
• Two vertical 90 degree bend elements allow the ducting to change direction inside the cabinet run, working around drawers, pipework or other fittings.
• Connector sleeves let you combine the flat duct sections to suit the actual depth and height of your cabinetry, rather than relying on a single fixed length.
• Supports installations up to 960mm in worktop height, giving flexibility for taller units or raised worktop designs.
• Black plastic ducting sits unseen behind the plinth, so there is nothing on show once your kitchen is fitted.

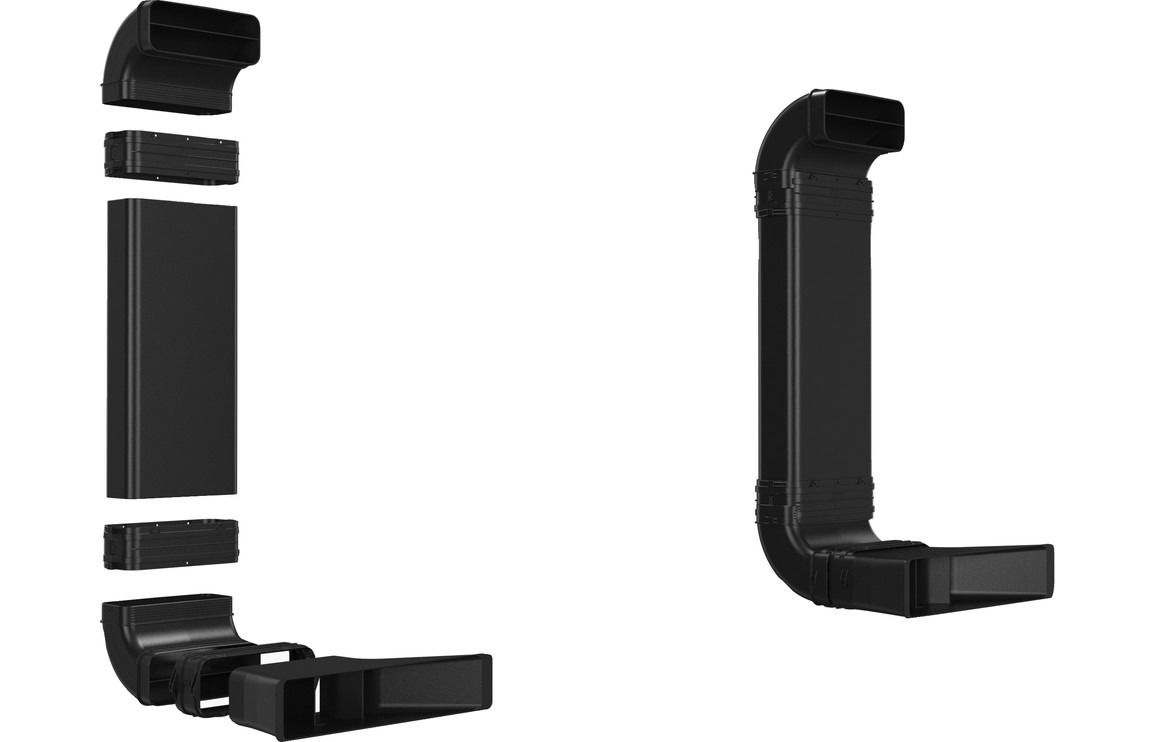

What's Included

• 2x vertical 90 degree L bow flat duct elements (male)
• 3x connector sleeves (female) to join the flat duct elements
• 1x straight tube element, 500mm (male)
• 1x diffuser element for the plinth outlet

Specifications

• Type: Ducting kit
• Ducting material: Black plastic
• Suitable for worktop depths: 70cm and above
• Maximum installation height: 960mm
• Packaged weight: 0.1kg
• Manufacturer's guarantee: 1 year
