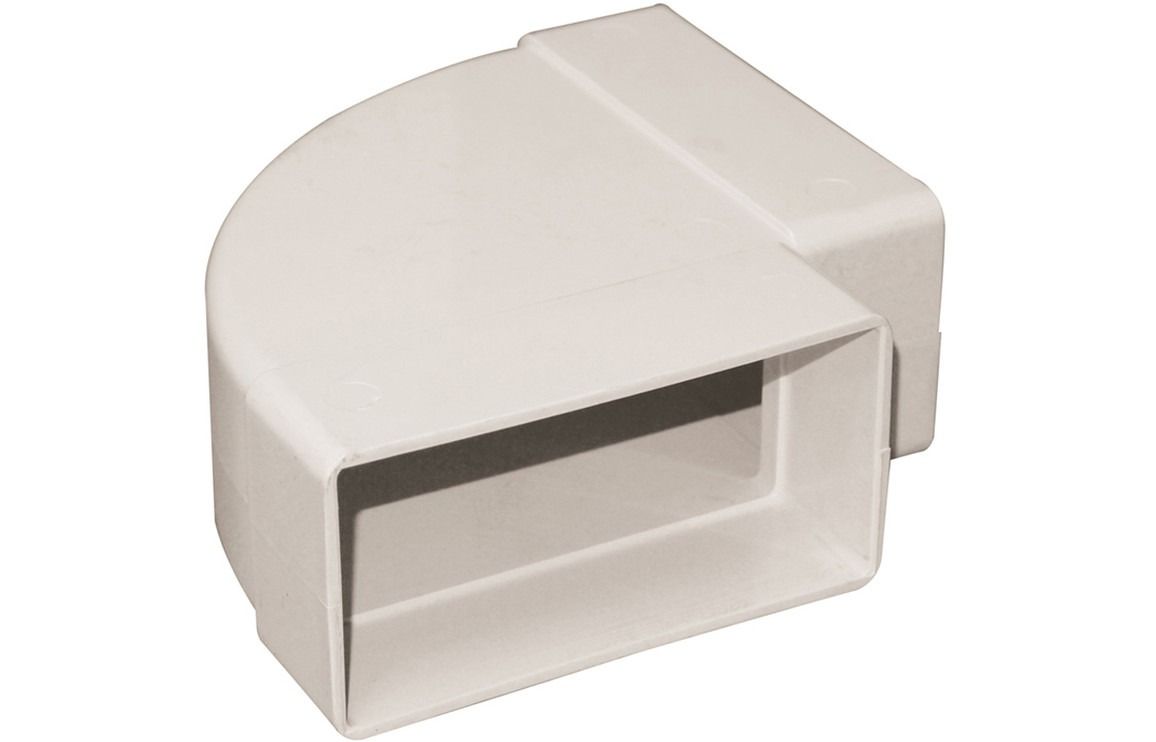

Manrose 110 x 54mm Rectangular Horizontal 90° Bend - White

This is a rectangular horizontal 90 degree bend from Manrose, used in the ducting run that carries air away from your cooker hood. It fits into rigid ducting systems and is designed to sit above kitchen cupboards, where the horizontal duct needs to change direction without dropping into usable cabinet space. It connects using female fittings, so it joins straight into the rest of your ducting run.

Key

Benefits

• The flat, rectangular profile is built for horizontal runs above wall units, so it keeps the ducting tucked out of sight and out of the way of storage.
• A 90 degree bend lets the ductwork turn corners cleanly, which matters in kitchens where the extraction route rarely runs in a straight line from hood to outside wall.
• Female connections make it straightforward to join to matching rigid ducting sections during installation.
• White ducting colour keeps the fitting unobtrusive if any section is ever visible above cabinetry.
• Backed by a 3 year manufacturer's guarantee, giving you confidence in a part that, once installed above the cupboards, is not something you want to be replacing often.

Specifications

• Type: Adaptor (90 degree bend)
• Height: 60mm
• Width/Length: 152mm
• Depth: 152mm
• Spigot diameter: 100mm
• Ducting colour: White
• Packaged weight: 5kg
• Manufacturer's guarantee: 3 years
• Airflow performance: 8l/s at 2.3Pa, 13l/s at 9.9Pa, 21l/s at 21Pa, 29l/s at 38Pa, 37l/s at 64Pa, 45l/s at 93Pa, 53l/s at 124Pa, 61l/s at 162Pa
