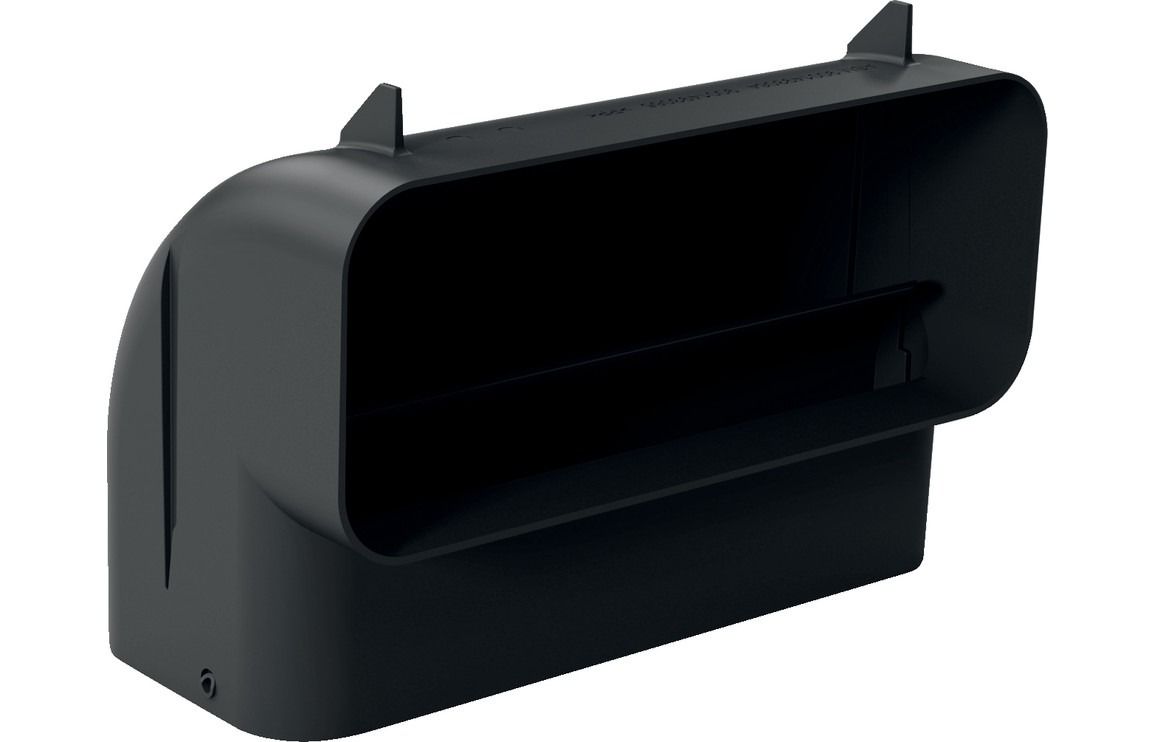

This is a flat ducting bend, chosen by Mastercraft Kitchens to route extraction ductwork where it needs to turn a vertical corner without leaving the cabinet. It is designed for kitchens with a 65cm worktop depth, where the ducting has to run partly within the furniture rather than sitting behind it. If your cooker hood needs to change direction inside a cabinet run, this is the fitting that makes that turn possible.
The small radius on this bend means it takes up less depth than a standard bend, which matters when cabinet space is tight and every centimetre behind a door counts. It connects via a female sleeve, so it joins cleanly to the next section of ducting without extra brackets or sealant. The duct itself is easy to cut on site, which gives your installer flexibility to fit the run to the exact space rather than working around a fixed length.
Key
Benefits
- Small radius design frees up cabinet space where a 65cm worktop depth limits how much room there is behind the units.
- Aerodynamic shape keeps air moving efficiently through the bend, so your extraction system does not lose pulling power at the turn.
- Female connector sleeve makes for a straightforward, secure join to adjoining ducting.
- Easy to cut to length on site, useful where the exact run needs adjusting during fitting.
- Black plastic finish suits ducting that may be partly visible within the cabinet.
Specifications
- Type: Ducting kit component
- Dimensions: Height 109mm, Width 222mm, Depth 154mm
- Material: Black plastic
- Packaged weight: 0.4kg
- Manufacturer guarantee: 1 year
